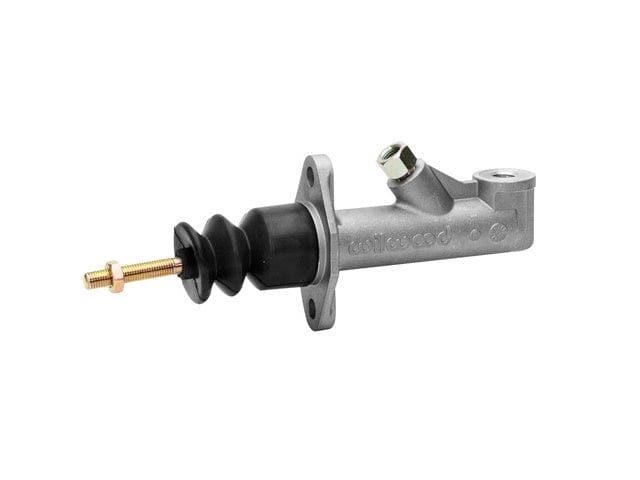

Wilwood Brake Master Cylinder 0.70'' - Non Integral

Wilwood Aluminium Master Cylinder 0.70''

Wilwood Compact Remote Reservoir Aluminium Master cylinders designed for use with either a detachable or remote fill reservoir. With a full 1.4" of stroke to accommodate short pedal ratios, small brake calipers, and hydraulic clutch actuation on space limited application.

• Bore Diameter: 0.700"
• Inlet Port Thread: 7/16" UNF Female
• Outlet Port Thread: 3/8" UNF Female
• Push Rod Thread: 5/16" UNF
• Vertical flange with 2.25" mounting hole centres

This is a Genuine Wilwood part
